Vol-vo EC80 Excavator Gear Swing Planetary Spider Assy Steel Material
Vol-vo EC80 Excavator Swing Planetary Spider Assy TGFQ
Product Parameter:
Product Name: Excavator Swing Spider Assy
Place of Origin: Guangdong China
Model: EC80
Means of Transport: By Sea, By Air or By Express

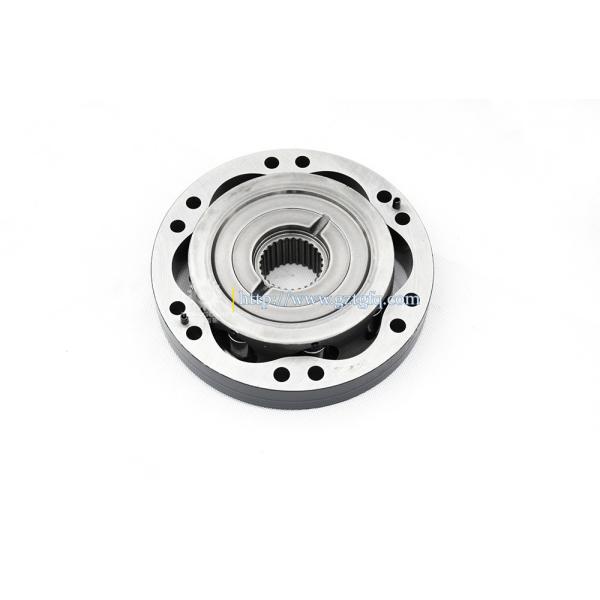

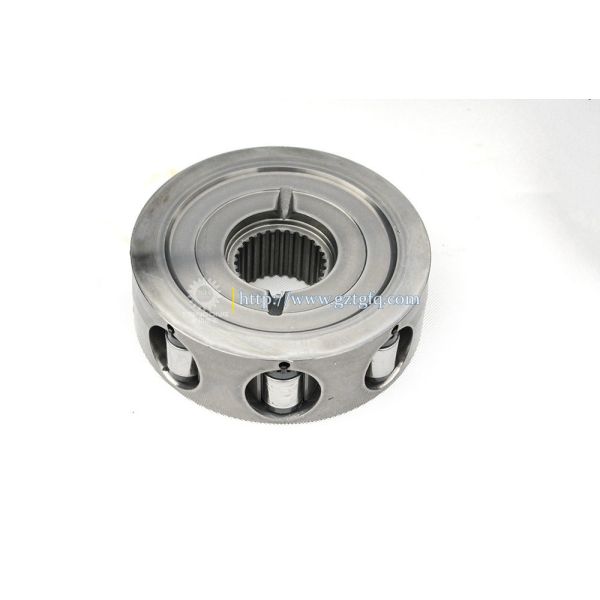

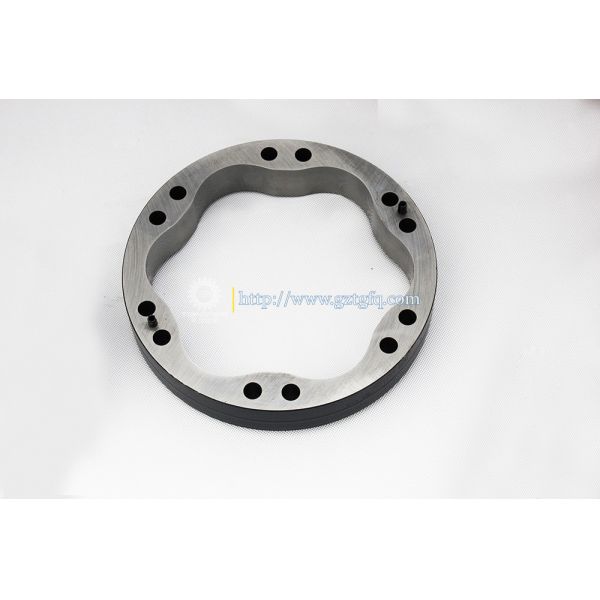

Picture for swing carrier assy with sun gear:
Drawing:
| Pos. | Part No | Qty | Parts name |
| | VOE14636561 | [1] | Swing motor |
| 1 | VOE14670500 | [1] | Seal |
| 2 | VOE14527081 | [1] | Brake |
| 3 | VOE14527082 | [1] | Body |
| 4 | VOE14527083 | [8] | Bolt |
| 5 | VOE14527681 | [6] | Ball |
| 6 | VOE14527085 | [1] | Washer |
| 7 | VOE14527086 | [1] | Ring |
| 8 | VOE14587959 | [1] | Plug |
| 9 | VOE14527087 | [1] | Shaft |
| 10 | VOE14527084 | [1] | Piston |
| 11 | VOE14527090 | [1] | Bolt |
| 12 | VOE11714987 | [2] | Screw |
| 13 | VOE14527091 | [1] | O-ring |
| 14 | PJ11712804 | [2] | Seal |
| 15 | VOE14527089 | [1] | Disc |
| 15A. | PJ7418169 | [1] | Flange |
| 16 | VOE14671450 | [1] | Cover |
| 17 | VOE14527071 | [11] | Bolt |
| 18 | VOE14587960 | [1] | Distributor |
| 19 | VOE14671460 | [1] | Seal |
| 20 | VOE11715566 | [6] | Spring |
| 21 | VOE14674570 | [1] | Block |
| 22 | VOE11712919 | [1] | Screw |
| 23 | VOE14527071 | [1] | Bolt |
| 24 | VOE14668647 | [2] | O-ring |
| 25 | VOE14674549 | [2] | Gasket kit |
| 26 | VOE14674567 | [2] | Relief valve |
| 27 | VOE14676471 | [2] | O-ring |
| 28 | PJ7412458 | [1] | O-ring |
| 29 | VOE14728415 | [1] | Cylinder block |
OUR STOCK
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.
Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
Product Tags:
|
|
Vol-vo EC80 /EC88R Excavator Gear Swing motor VOE14572717 Planetary Spider Assy VOE14528763 Cylinder block cam VOE14528765 Steel Material Images
|
